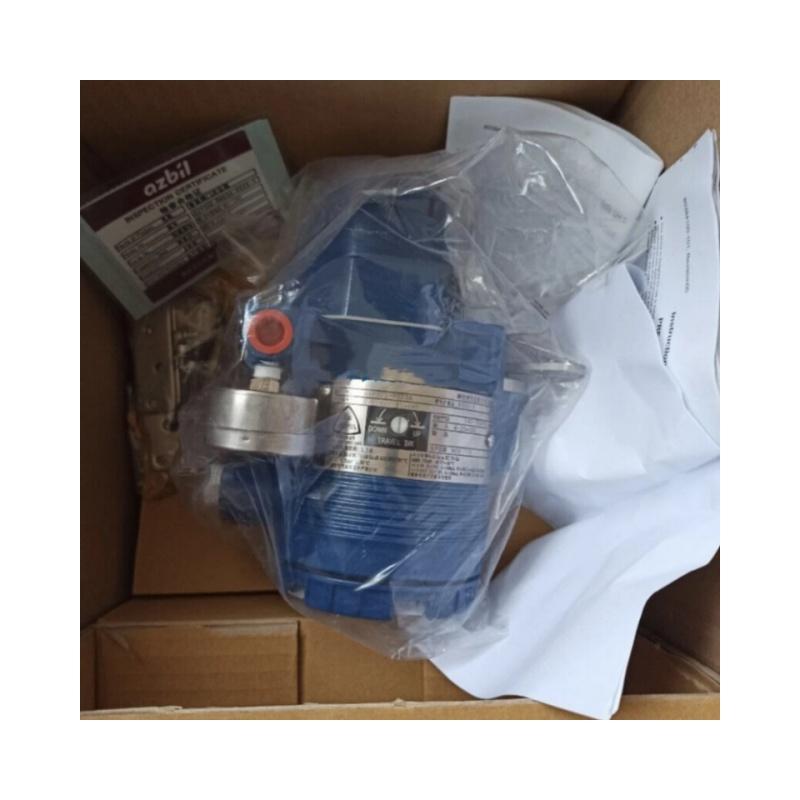

Posicionador de válvulas AZBIL AVP100-H, nuevo, original y al mejor precio.

Posicionador de válvulas AZBIL AVP100-H, nuevo, original y al mejor precio.

Posicionador de válvulas AZBIL AVP100-H, nuevo, original y al mejor precio.

Embalaje original sellado

Gran precio

Garantía de un año

En stock

  • Número de artículo.:

    AVP100-H
  • Orden (MOQ):

    1
  • Pago:

    100% T/T
  • Origen del producto:

    China
  • Color:

    As Model
  • Puerto de embarque:

    Xiamen
  • Plazo de entrega:

    2-3 days
  • Detalles del producto

Description:

AVP100-H is an intelligent electro-pneumatic valve positioner of the AVP100 series developed by Azbil (formerly Yamatake). Designed based on a microprocessor, it is mainly used to convert the 4~20mA DC control signal into a pneumatic output signal, driving the pneumatic actuator to realize accurate positioning and control of the valve. It combines high reliability and ease of use, and is widely used in industrial process control scenarios.
Key Specifications:
  1. Input Signal: 4~20mA DC (split range setting is supported).
  2. Input Impedance: Max 300Ω at 20mA DC.
  3. Supply Pressure: 140~700kPa (1.4~7.0kgf/cm²).
  4. Air Consumption: Max 4 L(N)/min (at 140kPa).
  5. Output Characteristics: Linear, equal percentage, quick opening; 16-segment user-defined curves are supported.
  6. Feedback Angle: ±4°~±20°; Maximum valve stem rotation angle 90° (adaptable to angular stroke).
  7. Explosion-proof/Protection: Explosion-proof ExdIICT6; FM/NEPSI intrinsic safety; IP66 protection level.
  8. Ambient Temperature Range: -40℃~+80℃.
  9. Weight: Approx. 1.7 kg (single-acting) / 2.0 kg (double-acting).
  10. Driving Current: 3.85mA; Minimum Supply Voltage: 12V.

Q1:What is the product situation and warranty like?
A:Brand-new genuine items. 1-year warranty included.

Q2:What is your payment terms?
A:T/T, Paypal supported.

Q3: What is the delivery time for the product? Is there sufficient inventory?
A:Standard models in stock, shipped in 3–5 business days after payment. Scarce models require manufacturer ordering—contact customer service for timelines.

Q4:Shipping & Tracking
A:DHL/FedEx/UPS available.Tracking number + link provided post-shipment. Full-process monitoring by our team.

Q5:Packaging & Safety

A: Embalaje original de la marca con protección reforzada (espuma, cajas de cartón selladas, cajas de madera para engranajes de precisión). Resistente a la humedad y a los impactos.
